1、Features：

For hospital wards and emergency room photography dedicated

Flexible mobile operating performance

Wireless remote exposure, greatly reducing the dose of physician radiation

2、The main technical parameters:

（1）Power conditions

voltage：communicate with220V±22V；

Power frequency： 50Hz±0.5Hz；

battery capacity： ≥5kVA；

battery capacity１Ω

（2）Photography conditions：Tube voltage：40-90kV a total of 11 files, each file 5kV;

Tube current：30,50mA total of 2 files;

time：0.05s-6 s a total of 20 files.

（3）Mechanical behavior

When the X-ray generator window down, the focus and the distance from the ground range of activities 450mm ~ 1770mm

The X-ray generator has a rotation angle of ± 180º around the horizontal axis

The X-ray generator has a rotation angle of ± 90º around the vertical axis;

（4）Overall dimensions:1290 (length) × 630 (width) × 1935 (high) (mm)3、Detail image：

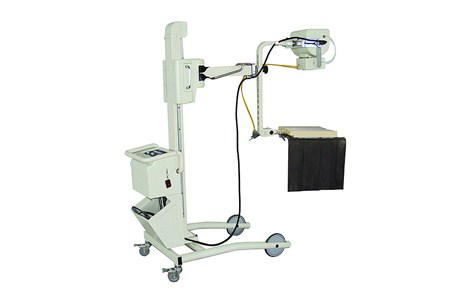

3、Detail image：
